Cách lựa chọn hệ thống máy nén khí
Air compressors play a huge role in our lives. It is not difficult to come across air compressors that are used in all industries from medical, manufacturing, vehicle maintenance to industry.
Today we would like to briefly describe how to choose from within our experience of a complete air compressor system. Depending on your needs and application in production, you will need to choose one of the following devices:
1. AIR COMPRESSOR
+ Oil-free piston compressors or oil-free piston compressors. This is a line of air compressors that can only meet small flows from 40 liters / min - 1.5 m3 / min. Normal pressure range from 7 bar - 20 bar. In which oil-based air compressors are used in most fields, and oil-free air compressors are mainly used in hospitals, laboratories, food, pharmaceuticals, etc.

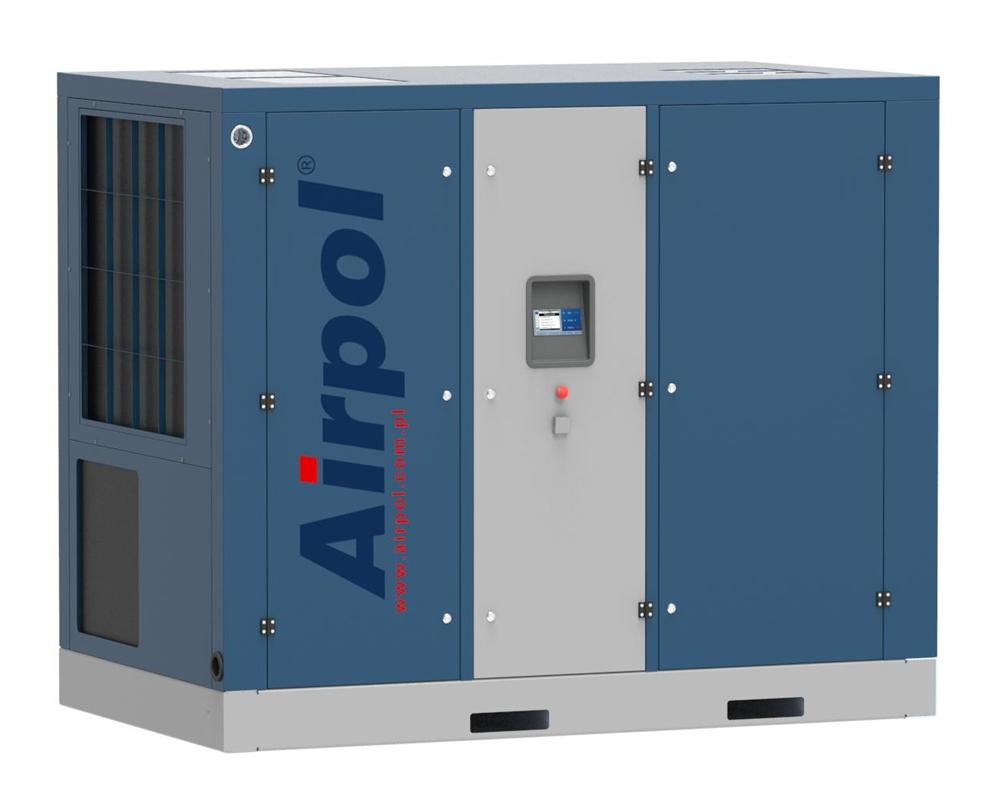

+ Oil-free screw compressors or oil-free screw compressors. This is a line of air compressors that are used when a large flow of 1 m3 - 100 m3/min is required. Normal pressure range from 7 bar – 13 bar. In which oil-based air compressors are used in most manufacturing fields, and oil-free air compressors are mainly used in hospitals, laboratories, food, pharmaceuticals, microchip production, clean rooms, etc.
+ High pressure air compressor: Applicable to customers who need an air compressor with a small flow of about 1m3 - 12m3 but high pressure from 30 bar - 400 bar. Industries that need high-pressure air compressors can be listed as PET bottle blowing industry, hydropower, ships, gas extraction...
+ Rent a sewing machine when, after that, when you have a good reputation. Renting compressors Atlas, Hitachi, Kobelco, Fusheng ..., repairing screw air compressors in Hanoi, Hai Phong, Ho Chi Minh.
+ Turbo air compressor: This is an oil-free air compressor that can produce a very large amount of air with high motor power that screw air compressors cannot meet. Its capacity is usually from 150 kw - 15,000 kw with flow from tens of m3/min to thousands of m3/min. Factories that often need such a large gas flow include: chemical production, textile, steel, oil and gas ...
+ Of the four types of air compressors mentioned above, the most popular is the screw compressor line. Therefore, I will focus on analyzing how to choose this air compressor.
Usually, customers choose an air compressor based on the following factors:
– There have been customers with the same production as me who have used an air compressor before or have used an air compressor before, so they will choose the same type of air compressor capacity or equivalent in flow and pressure.
– Calculate the total flow of compressed air equipment x 1.2 (preventive factor for pressure loss, leakage) combined with the highest pressure that the equipment needs to use to calculate and select the required air compressor. use.
– The machine supplier or the consultant requires the default air compressor parameters.
After choosing the capacity of the air compressor, the next step is to choose the compressed air pipeline, electric cable, and cooler for each type of screw air compressor.
– 7.5 kw screw air compressor: Compressed air flow is about 1.2 m3/min at 7 bar pressure. Select 30A cooler, cable cross-section (mm2): 3.5 – 5.5, compressed air output: phi 20
– 11kw screw air compressor: Compressed air flow is about 1.8 m3/min at 7 bar pressure. Select 3 phase 50A circuit breaker, electrical cable cross-section (mm2): 5.5 – 8, compressed air output cross section: phi 25
– 15kw screw air compressor: Compressed air flow is about 2.5 m3/min at 7 bar pressure. Choose 3-phase 60A circuit breaker, electrical cable cross-section (mm2): 8 - 14, compressed air output cross section: phi 25
– 22kw screw air compressor: Compressed air flow is about 3.9 m3/min at 7 bar pressure. Select 3-phase 100A circuit breaker, electrical cable cross-section (mm2): 14 – 50, compressed air output cross section: phi 25
– 37kw screw air compressor: Compressed air flow is about 6.5 m3/min at 7 bar pressure. Choose 3-phase 150A circuit breaker, electrical cable cross-section (mm2): 38 – 100, compressed air output cross section: phi 40
– 55kw screw air compressor: Compressed air flow is about 9.5 m3/min at 7 bar pressure. Select three-phase 200A circuit breaker, electrical cable cross-section (mm2): 38 – 100, compressed air output cross section: phi 40
– 75kw screw air compressor: Compressed air flow is about 13 m3/min at 7 bar pressure. Select 3 phase 225A circuit breaker, electrical cable cross-section (mm2): 38 – 100, compressed air output cross section: phi 50
– 100kw screw air compressor: Compressed air flow is about 18 m3/min at 7 bar pressure. Select 3-phase 300A circuit breaker, electrical cable cross-section (mm2): 100 – 150, compressed air output cross section: phi 60
Rent a sewing machine when, after that, when you have a good reputation. Renting compressors Atlas, Hitachi, Kobelco, Fusheng ..., repairing screw air compressors in Hanoi, Hai Phong, Ho Chi Minh.
2. AIR DRYER
Currently, there are two main types of air dryers: absorption gas dryers and refrigerant gas dryers.
– For requirements where the dryness of compressed air is not very high with a dew point temperature of 3 – 10 degrees Celsius, choose a flax-agent air dryer. This is also the most commonly used air dryer on the market
– For higher requirements that need absolutely dry compressed air with a dew point temperature of -40 – -60 degrees Celsius, an air dryer that works on the principle of absorption will be selected. This is also the choice of very few factories because the price for this type of air dryer is very expensive.
With refrigerant air dryers, we usually choose the air dryer flow 20% higher than the compressor flow because the air dryer uses part of the compressed air pressure to push the condensate through the automatic drain valve.
The selection of compressed air pipes, electrical cables, and coolers for air dryers is generally simple and is usually indicated in the catalog. Particularly for aptomat, depending on the type of air dryer and capacity, it will use a 3-phase or 1-phase source.
3. FILTER ON AIR COMPRESSOR PIPE
Filtering the air compressor, depending on the compressed air quality requirements, will need less or more filtration levels. Usually there are 5 options:
– If compressed air quality is not required, there is no need to install a filter on the compressor pipeline.
– 1 primary filter on the pipeline with a filter size of 5 Mm
– 2 filters include: 1 coarse filter (1 Mm – filter dust, water) and 1 fine filter ( 0.01 Mm – filter dust, water and oil). This is the option applied in many air compressor systems.
– 3 filters including: 1 primary filter, 1 coarse filter and 1 fine filter.
– 4 filters including: 1 primary filter (5Mm), 1 coarse filter (1Mm), 1 fine filter (0.01 Mm) and 1 activated carbon deodorizing filter (0.003 Mm). This is an option chosen by many factories using oil-free air compressor systems such as pharmaceuticals, food, drinking water ......
Two parameters to choose air filter are compressed air flow and pressure will choose greater than or equal to the parameters of the air compressor.
Air compressor rental, cheap air compressor repair. Renting compressors Atlas, Hitachi, Kobelco, Fusheng ..., repairing screw air compressors in Hanoi, Hai Phong, Ho Chi Minh.
4. AIR COMPRESSOR
The air compressor is responsible for storing and compensating the pressure of the air compressor system. Relatively we can choose an air compressor based on the capacity of the air compressor as follows:
– Air compressor 7.5 kw – 15 kw choose air compressor from 200 liters – 400 liters
– 22 kw air compressor chooses air compressor from 400 liters – 700 liters
– Air compressor 37 kw choose air compressor from 700 liters – 1000 liters
– 55 kw air compressor choose air compressor from 1000 liters – 2000 liters
– 75 kw air compressor chooses an air compressor from 2000 liters to 3000 liters.
