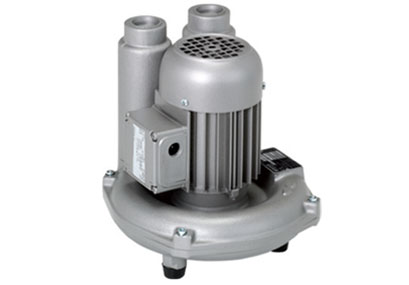

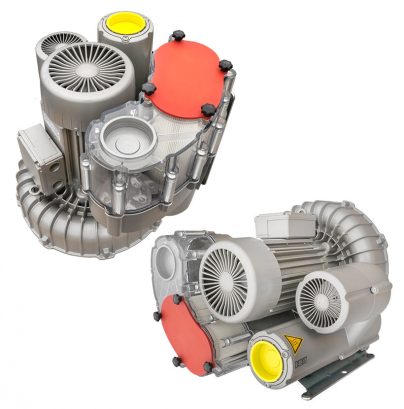

Regenerative Blowers
Danh mục:
Máy thổi khí
Blowers
High performance. 100% oil-less, contact-less operation; all wrapped together in a quiet, compact regenerative blower.
Many models can be converted for two-stage operation.
The 7 and 8 Series also offer integrated inlet filters and integrated pressure relief valves.
Models are available with smaller HP motors for applications requiring less capacity.
Model | CFM Open Flow |
Max. Pressure Inches WG |
HP/kW | Data Sheet | Operating Manual |
Spare Parts, Serial Number Required |
---|---|---|---|---|---|---|
SV 130/1 | 94 94 94 94 94 |
24 44 78 95 121 |
0.9/.68 1.2/0.9 1.7/1.3 2.0/1.5 2.4/1.8 |
view | view | No Index |
SV 201/1 | 135 135 135 |
50 84 115 |
1.7/1.3 2.4/1.8 3.6/2.7 |
view | view | No Index |
SV 300/1 | 229 229 229 |
62 98 125 |
3.6/2.7 4.8/3.6 6.4/4.8 |
view | view | No Index |
SV 400/1 | 276 276 276 |
76 117 137 |
4.8/3.6 6.4/4.8 8.9/6.6 |
view | view | No Index |
SV 500/1 | 359 359 359 |
70 117 149 |
6.4/4.8 8.9/6.6 12.1/8.9 |
view | view | No index |
SV 700/1 | 529 529 529 |
68 113 137 |
8.9/6.6 12.1/8.9 17.7/13.2 |
view | view | No Index |
SV 1100/1 | 735 735 735 |
52 109 129 |
12.1/8.9 17.7/13.2 24.1/18 |
view | view | No Index |
