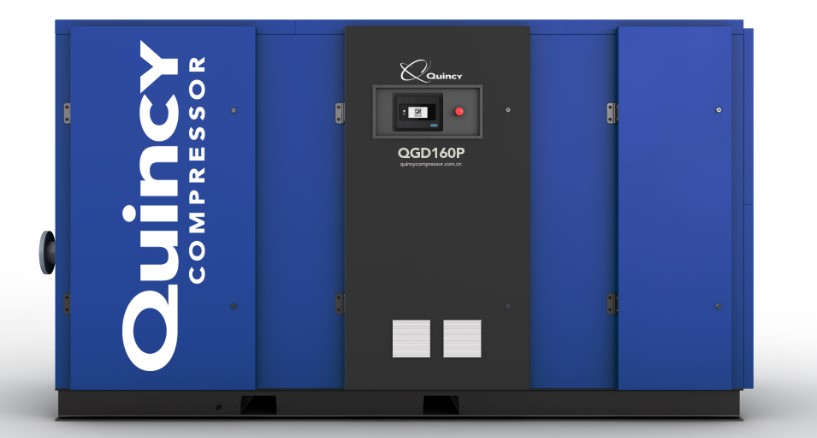

QGD Series (45-355KW)
Quincy QGD (Quincy Great Drive) is the more competitive technology in the world. It is a gear-driven oil-injected screw compressor. The Quincy QGD series comes with an Airlogic® intelligent control system. Airlogic® intelligent control provides a powerful and comprehensive control capability and is your full time preventive maintenance, compressed air and energy manager for your production facility.
· 45KW~355KW
· Direct Drive
· 8.0 m3/min~63.3 m3/min @8Bar
FEATURES:
- Specially designed fluid/air separator element ensures oil carryover ≤3 ppm.
- The integrated fan design is efficient and reliable. The controller controls the start and stop of the fan according to the oil temperature, which reduces the energy consumption.
- QuinSyn complete line of synthetic fluids for effective cooling. QuinSyn fluids have a rated life of up to 8000 hours.
- Positive closure inlet valve eliminates current peak penalties during start up.
- Air inlet filter with low pressure drop reduces air suction noise level effectively. The filtration efficiency of 3μm particles can reach 99.9%.
- Quincy high efficiency glass microfiber fluid filter provides absolute airend protection.
- Wye-Delta reduced voltage starter uses Schneider/Simens components.
- Airlogic® intelligent control provides a rugged and reliable platform.
- Efficient and reliable airend comes with standard two-year warranty. Flange connecting the motor and airend keeps permanent shaft alignment. 5-year warranty option for the airend provides a stronger quality guarantee.
- Rugged Motor, Standard IP54,The optimized air circulation and temperature field distribution within the enclosure ensure the motor receives sufficient cooling.
- Frequency convertor (QSV series) can realize vector continuously variable frequency. Wide FAD adjustment range from 20% to 100% is a higher efficiency energy saving design.
STANDARD QUALITY FEATURES DELIVER VALUABLE BENEFITS
- Heavy-duty steel-based frame, totally enclosed, low sound acoustical enclosure
- Positive closure inlet valve
- Siemens / Schneider electric components
- Full flow spin-on oil filter
- Direct driven, permanent shaft alignment
- AirLogic® intelligent control system
- 380V/3P/50Hz IP54 motor
- QuinSyn-Plus® long life synthetic compressor fluid
- High-efficiency converter
|
|
