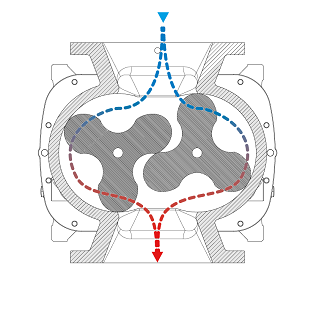

The volumetric roots pumps Bora - BA series are equipped with three lobe rotors having a singular geometrical shape that emphasizes the positive aspects of this design and annulling the negative ones (i.e.: gas recirculation). Moreover, the shaft sealing is ensured by a dynamic gasket preventing any leakage.
These pumps should always be used together with a primary pump increasing the total flow rate at low operating pressures and reaching a great improvement of the final pressure.
Typical applications of these pumps are in farmaceutical sector, in vacuum metal treatment, in electrical transformer oil outgassing, in food packaging.
|
|
m³/h @ 50/60 Hz |
Differenziale di P max |
kW 50/60 Hz |
RPM @ 50/60 Hz |
DN |
kg |
|---|---|---|---|---|---|---|
|
500/600 |
60 |
2,2/2,6 |
2800/3300 |
80 |
113 |
|
|
900/1080 |
60 |
3/3,6 |
2800/3300 |
100 |
130 |
|
|
1450/1740 |
60 |
4/4,8 |
2800/3300 |
150 |
165 |
|
|
2000/2400 |
60 |
5,5/6,6 |
2800/3300 |
150 |
212 |
|
|
Primo Stadio |
Portata @ 5mbar 50/60 Hz |
Pompa a Lobi |
P mbar(A) |
kW @ 50/60 Hz |
kg |
|---|---|---|---|---|---|---|
|
CBL.151/500 |
LC.151 |
450/500 |
BA.500 |
0,03 |
5,5/6,3 |
320 |
|
LC.205 |
750/860 |
BA.900 |
0,03 |
8,5/10,2 |
400 |
|
|
LC.305 |
750/860 |
BA.900 |
0,03 |
10,5/12,2 |
410 |
|
|
LC.305 |
1050/1300 |
BA.1500 |
0,03 |
11,5/13,4 |
450 |
