Sanitary series pumps
The Tapflo air operated diaphragm pump sanitary series is particularly designed to meet the requirements of the food, beverage, pharmaceutical and cosmetic industries. Lubrication free air distribution system, maintenance free ball check valve system and total visual inspection of the wetted parts are some of the major features for this pump series.
Made to be clean

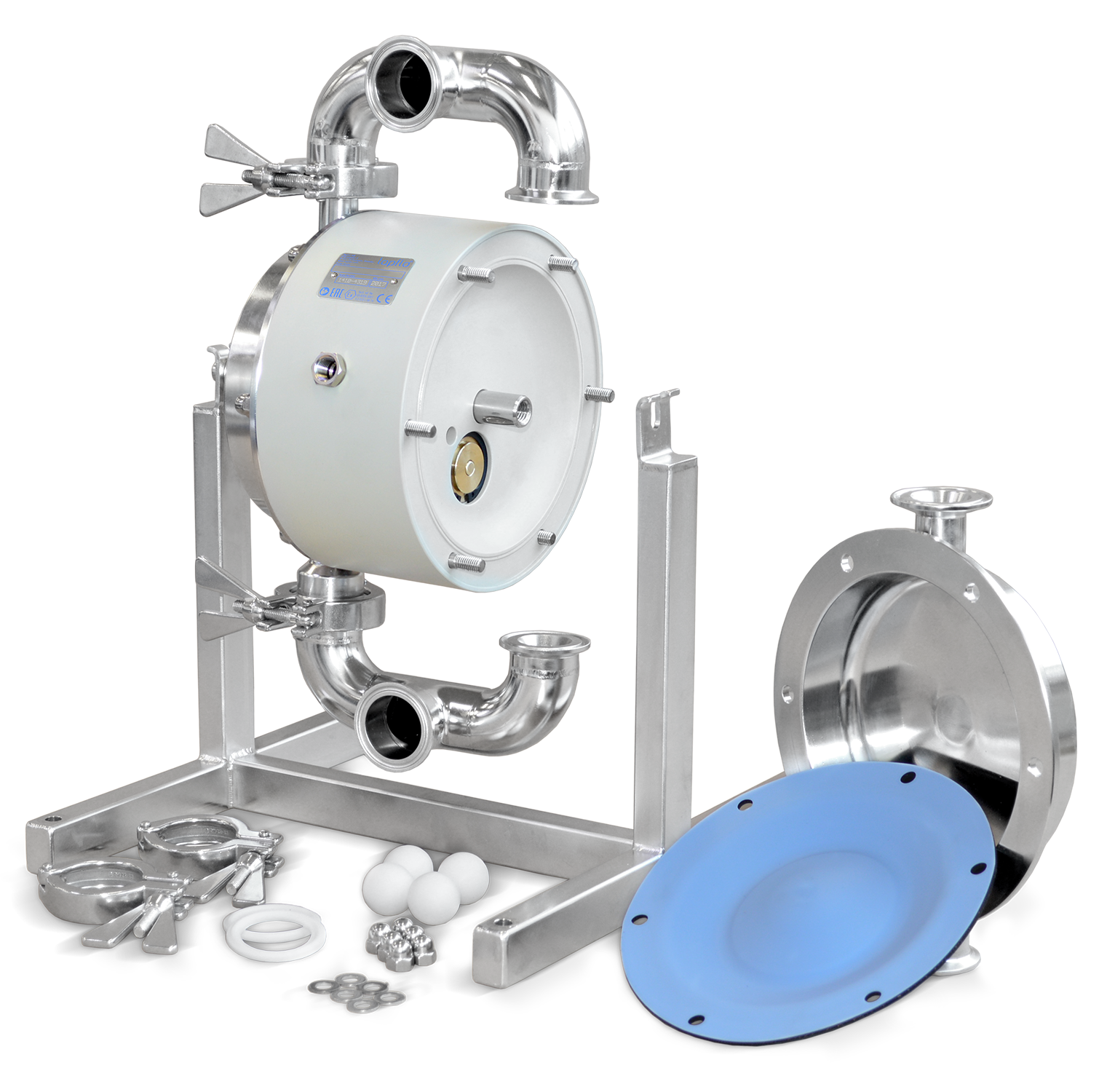

Our design allows for total visual inspection of the wetted parts. There are no hidden areas where bacteria can grow. The manifold clamps and the housing screws are simply removed for complete disassembly and cleaning. The pump is also designed for cleaning and sterilization in place – C.I.P. and S.I.P. After such operations, the pump is easily turned in its support for drainage.
ATEX certified pumps
All sanitary pumps are available in explosion proof ATEX marked version. They are supplied with earth connection and conductive materials; conductive centre section and diaphragms in PTFE (conductive back) or EPDM (conductive).
Typical applications
| Industry | Example of application |
| Dairy products | Milk, cream, yogurt, cream cheese, melted cheese |
| Grossery | Ketchup, mayonnaise, tomato products, mustard |
| Beverages | Flavours, colouring, fruit juice |
| Bakery | Dough, ingredients |
| Brewery | Beer, flavours, colouring, wort |
| Hygiene | Soap, toothpaste, schampoo |
| Cosmetics | Cream, alcohol, perfume |
Aluminium and cast iron for thick and thin pH neutral liquids.
Stainless steel for chemicals.
Material of components
| Component | Model: Material |
| Wetted metal details | Stainless steel AISI 316L |
| Centre block, not wetted |
PP |
| Diaphragms | PTFE, PTFE with white back, EPDM, white EPDM , NBR |
| Valve ball | PTFE, EPDM, NBR, AISI 316, PU or ceramic |
| Air valves | Brass/NBR or optional AISI 3161/FKM |
| Sealings (wetted) | PTFE or EPDM |
| Housing pin screws | Stainless steel AISI 304 |
| Diaphragm shaft | Stainless steel AISI 304 |
