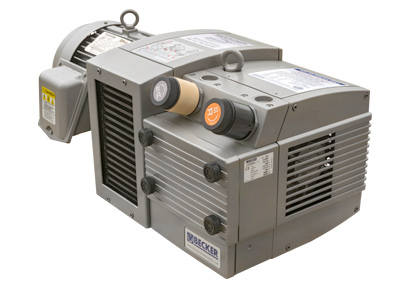

COMBINED VACUUM/PRESSURE PUMPS
Becker pioneered the development of combined pressure and vacuum pumps when it developed a device called the secondary suction. It is a secondary inlet port that allows a continuous flow of inlet air and lets the compressor operate independently of the vacuum pump. All Becker combined pumps include this design
Combined Pumps
100% Oil-less Combined Vacuum and Pressure Pumps
Our direct-drive combined blast/dual vacuum pumps rule out the need to purchase separate pumps for vacuum and pressure for the same application.
Requiring minimal maintenance, these quiet combined pumps allow the operator to change vacuum flow and pressure flow independently with the ability to adjust either without loss of performance.
Other features include separate inlet filters for each port and standard vacuum and pressure regulators.
| Model | CFM Open Flow |
Max. Vac. | Max. Pressure | HP/kW | Data Sheet | Operating Manual |
Spare Parts, Serial Number Required |
|---|---|---|---|---|---|---|---|
| DVT 3.60 | 40 | 18 in.Hg | 9 PSIG | 5.0/3.7 | view | view | Index V, Index W, Index E, Index D, No Index |
| DVT 3.80 | 48 | 18 in.Hg | 9 PSIG | 5.0/3.7 | view | view | Index U, Index V, Index X, Index C, Index E, Index F, No Index |
| DVT 3.100 | 70 | 18 in.Hg | 9 PSIG | 7.5/5.6 | view | view | Index W, Index D, No index |
| DVT 3.140 | 94 | 18 in.Hg | 9 PSIG | 10.0/7.5 | view | view | Index W, Index D, No Index |
THE DVX SERIES | Combined Pumps:
Combined Pumps
100% Oil-less Combined Vacuum and Pressure Pumps
| Model | CFM Open Flow |
Max. Vac. | Max. Pressure | HP/kW | Data Sheet | Operating Manual |
Spare Parts, Serial Number Required |
|---|---|---|---|---|---|---|---|
| DVX 3.60 | 40 | 15 in.Hg | 8.7 PSIG | 4.8/3.6 | view | view | No Index |
| DVX 3.80 | 48 | 15 in.Hg | 8.7 PSIG | 6/4.5 | view | view | No Index |
| DVX 3.100 | 70 | 15 in.Hg | 8.7 PSIG | 8.9/6.6 | view | view | No index |
| DVX 3.140 | 94 | 15 in.Hg | 8.7 PSIG | 12.1/9 | view | view | No Index |
