THE DVT SERIES/ Combined Pumps

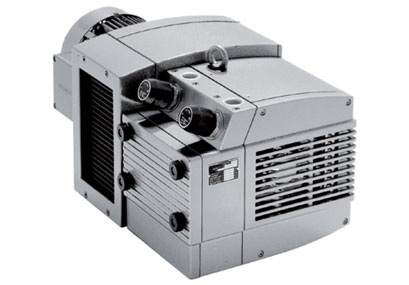

Combined Pumps 100% Oil-less Combined Vacuum and Pressure Pumps
Our direct-drive combined blast/dual vacuum pumps rule out the need to purchase separate pumps for vacuum and pressure for the same application.
Requiring minimal maintenance, these quiet combined pumps allow the operator to change vacuum flow and pressure flow independently with the ability to adjust either without loss of performance.
Other features include separate inlet filters for each port and standard vacuum and pressure regulators.
| type |
max. suction air rate |
max. pressure |
max. motor capacity [KW] 50/60Hz |
|---|---|---|---|
| DVT 3.60 | 58/69 | ±600/±600 | 2,40/3,00 |
| DVT 3.80 | 70/82 | ±600/±600 | 4,00/4,80 |
| DVT 3.100 | 103/120 | ±600/±600 | 5,50/6,40 |
| DVT 3.140 | 137/160 | ±600/±600 | 7,80/9,30 |
| DVX 3.60 | 58/69 | ±600/±600 | 2,40/3,00 |
| DVX 3.80 | 70/82 | ±600/±600 | 4,00/4,80 |
| DVX 3.100 | 103/120 | ±600/±600 | 5,50/6,40 |
| DVX 3.140 | 137/160 | ±600/±600 | 7,80/9,30 |
| DVTLF 2.250 K | 242/287 | ±500/±500 | 7,80/9,30 |
| DVTLF 2.400 | 380/455 | ±500/±500 | 11,0/12,5 |
| DVTLF 2.500 | 500/575 | ±500/±500 | 15,0/17,3 |
