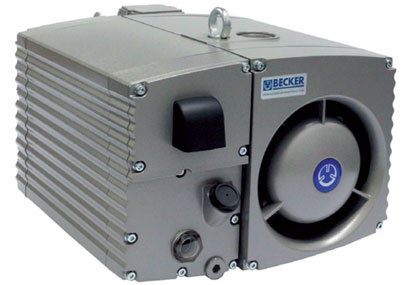

The U Series/ Oil-Flooded Rotary Vacuum Pumps
Danh mục:
Bơm hút chân không kiểu cánh gạt
Our rotary vacuum pumps are cool running, quiet, and highly efficient.
Providing vacuum to 29.9 in.Hg (0.4 Torr), our compact, direct-drive, oil-flooded pumps operate on a semi-synthetic oil and offer gas ballast as an option. Our multi-stage oil separation system is 99.9+% efficient.
If you want reliability and durability combined with industry-leading performance, you want a Becker rotary vacuum pump.
| type | max. suction air rate [m3/h] 50/60Hz |
max. vacuum [mbar abs.] 50/60Hz |
max. vacuum [mbar rel.] 50/60Hz |
max. motor capacity [KW] 50/60Hz |
|---|---|---|---|---|
| U 4.20 | 18/21 | <1,0/<1,5 | <-999,0/<-998,5 | 0,55/0,66 |
| U 4.40 | 41/48 | 0,5/0,5 | -999,5/-999,5 | 1,50/1,80 |
| U 5.70 | 70/84 | <0.1/<0.1 | <-999,9/<-999,9 | 1,5/1,8 |
| U 5.100 | 100/120 | <0.1/<0.1 | <-999,9/<-999,9 | 2,2/2,6 |
| U 5.165 | 165/198 | <0.1/<0.1 | <-999,9/<-999,9 | 3,0/3,6 |
| U 5.200 | 200/240 | <0.1/<0.1 | <-999,9/<-999,9 | 4,0/4,8 |
| U 4.250 SA/K | 244/276 | 3,0/3,0 | -997,0/-997,0 | 7,80/9,30 |
| U 4.250 F/K | 244/276 | 0,5/0,5 | -999,5/-999,5 | 7,80/9,30 |
| U 4.300 | 300/360 | 0,5/0,5 | -999,5/-999,5 | 7.50/8.60 |
| U 4.400 SA/K | 435/508 | 3,0/3,0 | -997,0/-997,0 | 11,0/12,5 |
| U 4.400 F/K | 435/508 | 0,5/0,5 | -999,5/-999,5 | 11,0/12,5 |
| U 4.630 SA/K | 624/732 | 3,0/3,0 | -997,5/-997,5 | 15,0/18,5 |
| U 4.630 F/K | 624/732 | 0,5/0,5 | -999,5/-999,5 | 15,0/18,5 |
| U 5.300* | 300/360 | 0.1/0.1 | -999,9/-999,9 | |
| U 5.400* | 400/480 | 0.1/0.1 | -999,9/-999,9 | |
| U 5.500* | 500/600 | 0.1/0.1 | -999,9/-999,9 | |
| U 5.650* | 650/780 | 0.1/0.1 | -999,9/-999,9 |
* These devices are in preparation.
Technical information: please see at THE U SERIES
